High quality CNC deephole drilling boring machines

Product Description

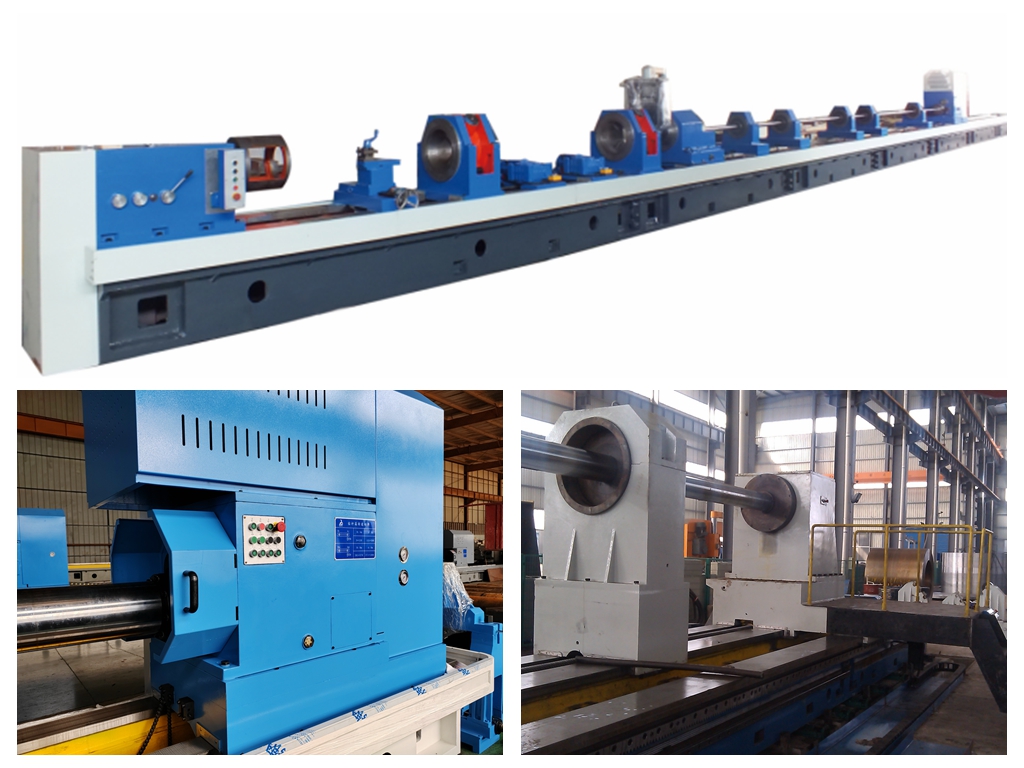

TK2225G series CNC deephole drilling boring machines adopt the double rectangle guideway on the bed body, which is treated by quenching treatment, to get the  excellent wear-resistance. The protection devices are installed between the guide ways, around the machine to avoid oil splash and leakage. The feeding system and oil feeder adopt servo motor control and gear-rack transmission to assure the safety of the tool and the workpiece, the machine is easily operated and has the good rigidity. The spindle motor uses AC variable frequency motor with stepless speed regulation. Tk2225G series machines are specially designed for deep hole processing of cylindrical workpiece, it is applicable to the process of drilling and boring. When drilling the machine adopts internal chip-removal (BTA type), the cutting oil is supplied by oil feeder to cutting area, the chip is discharged through the inner hole of drilling bar and is collected into the chip container located in the back part of the machine. The machine is equipped with high efficient compound tool, the skiving roller burnishing tool can be expanded and retracted automatically, it can achieve high efficient processing for oil cylinder production. Germany WENAROLL tool can be chosen, and the customer can also use the tool manufactured by our company.

Specifications

NO	Items	Description
	Machine model series	TK2225G	TK2125G
1	Drilling diameter rang	/	Φ30-100mm
2	Boring diameter rang	Φ40-250mm	Φ40-250mm
3	Boring depth	1-12m	1-12m
4	Fixture clamping range	Φ60-350mm	Φ60-350mm
	Machine spindle center height	450mm	450mm
	Headstock spindle speed	/	60-1000 r/m， 12 levels
	Headstock Spindle hole diameter	Φ75mm	Φ75mm
	Spindle front taper hole diameter	Φ85mm (1:20)	Φ85mm (1:20)
	Drill box motor	60-1000r/min 12	22 kw
	Drill box spindle hole diameter	/	/
	The front taper hole of drill box	/	/
	Drill box speed	/	/
5	Feeding speed range	5-3200mm/min	5-2000mm/min
6	Feeding carriage rapid speed		2m/min
	Main motor	/	30KW
7	Feed motor power	36 N.M	36 N.M
	Feeding carriage rapid motor power	3KW	3KW
	Hydraulic pump motor power	N=1.5KW	N=1.5KW
	Hydraulic system rated working pressure	6.3 Mpa	6.3 Mpa
	Coolant pump motor	N=5.5kw ( 4 groups)	N=5.5kw ( 4 groups)
	Coolant system rated pressure	2.5Mpa	2.5Mpa
	Cooling system flow	100、200、300, 400 L/min	100、200、300, 400 L/min
	Max. axial force of oil feeder	6.3KN	6.3KN
	Max.clamping force of oil feeder	20KN	20KN
	Control system	Siemens 808 or KND	Siemens 808 or KND
	Power supply	380V, 50HZ, 3 phase	380V, 50HZ, 3 phase

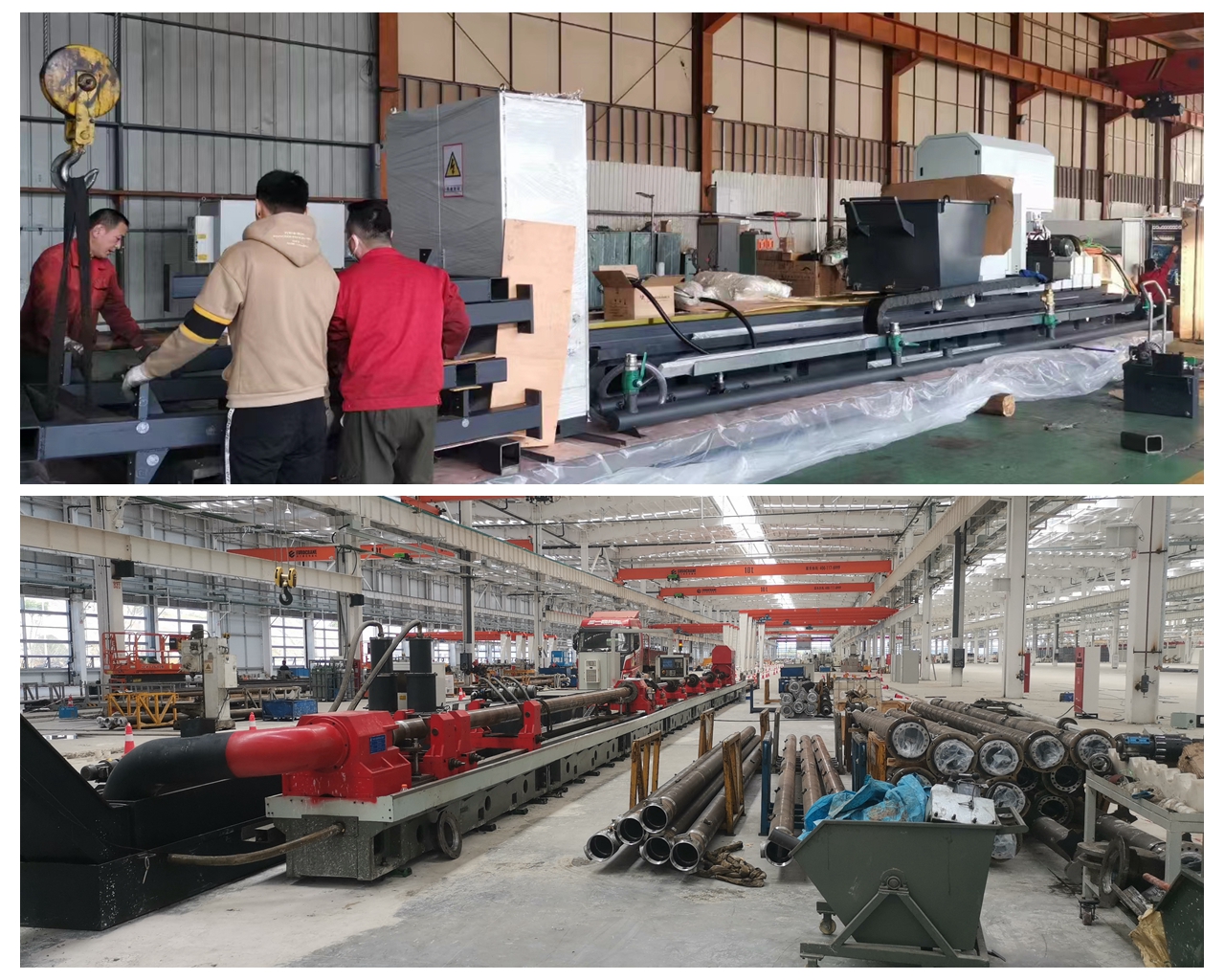

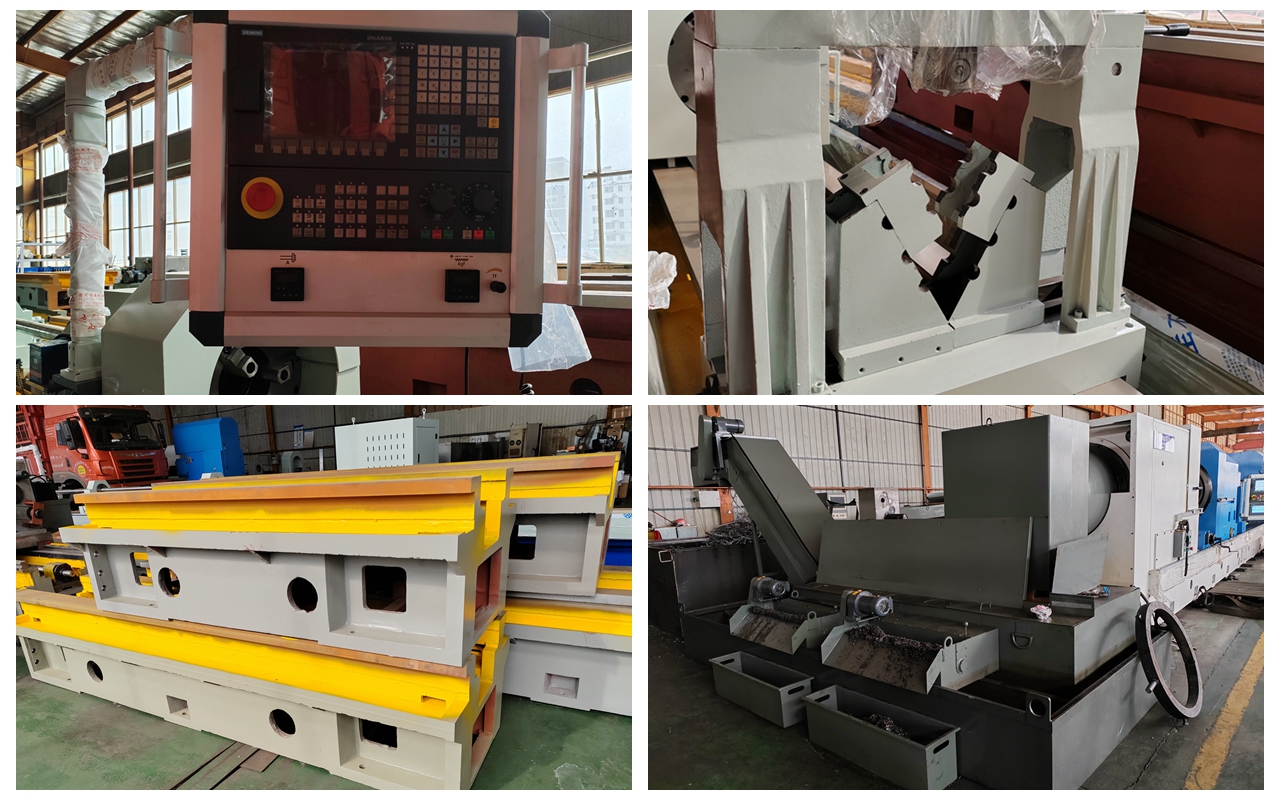

Photos Wall
