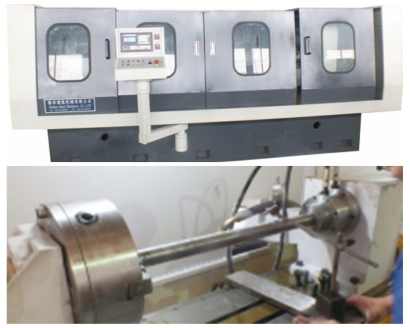

ZK series CNC deep hole drilling machine(Single spindle)

Product Description

ZK series single-axis CNC deep hole drilling machine is a special deep hole drilling machine with high efficiency, high precision and high automation. This machine adopts the external chip removal drilling method (gun drilling method) for drilling Φ8-30mm. It can replace the processing accuracy and surface roughness that generally need to be drilled, expanded and reamed. When drilling the diameter of Φ30-50mm, the machine tool adopts the BTA drill bit made by our company for cutting, which makes the cutting efficiency faster and smoother, and at the same time makes the chip removal smoother and cleaner. ZK series single-axis CNC deep-hole drilling machine is a single-axis CNC deep-hole drilling machine that rotates the workpiece and the tool, and the tool makes feed motion. It can also fix the workpiece and rotate the tool and make feed motion. Single action function, it also has the function of automatic cycle. Not only can center drilling, but also can process eccentric holes. Therefore, it can be suitable for small batch processing, especially suitable for the processing requirements of mass production. It can drill through holes as well as blind or stepped holes. Our company has sold many machine tools in China, which can complete the precision machining of workpieces with our deep hole equipment. Please contact our company for more machine tools.

Specifications

NO	ITEMS	Description
1	Models	ZK2105A	ZK2106A
2	Drilling diameter rang	Φ8-Φ50mm	Φ8-Φ60mm
3	Max processing depth	500mm/1000/1500/2000mm	500mm/1000/1500/2000mm
4	Max wprkpiece length	500mm/1000/1500/2000mm	500mm/1000/1500/2000mm
5	Headstock adjustable speed	60-1000 r/min or without headstock	60-1000 r/min or without headstock
6	Drill box spindle speed	100-2000r/min (stepless)	100-2000r/min (stepless)
7	Drill bar feeding speed range	10-500 mm/min	10-500 mm/min
8	Max clamping diameter for workpiece	300mm	300mm
9	Fast feeding	2000mm	2000mm
10	Feed motor torque	18 Nm	18 Nm
11	Headstock spindle motor power	15kw	15kw
12	Drill bar spindle motor power	15kw	15kw
13	Coolant system pressure range	1-5Mpa (adjustable)	1-5Mpa (adjustable)
14	Coolant system flow	6-100 L/min, 100 L/min	6-100 L/min, 100 L/min
15	Drilling length diameter ratio	1:100	1:100
16	Machine total power	50KW	50 KW
17	Cutting liquid filter accuracy	20um	20um
18	Control system	Siemens or KND	Siemens or KND
